Aluminum Extruder: Manufacturing Guide for Engineering Teams

It physically comes down to an aluminum extruder forcing hot billet under hydraulic pressure through a custom-designed tool to create an endless section with a specific shape. That’s the physics of what extrusion is. What they’re skipping in that summary is all the stuff that an engineer actually has to know before they design in a profile: what alloy selection you should make, what kind of die are you paying for, how many of the tolerances you’re getting out of the press and how many the subsequent cnc process will add, and how the proposed changes to tariffs in 2026 may impact your supply base.

The guide covers each step of the process-from preheating of the billet all the way through CNC post-machining-with concrete specification examples, alloy comparison, and actual live data gathered at the Lecreator extrusion machining factory. Whether you’re screening suppliers, prototyping an initial extruded part, or hoping to cut cost while maintaining tight tolerances, you’ll find an actionable take-away within every chapter of this Guide to Precision Aluminum Extrusion Machining.

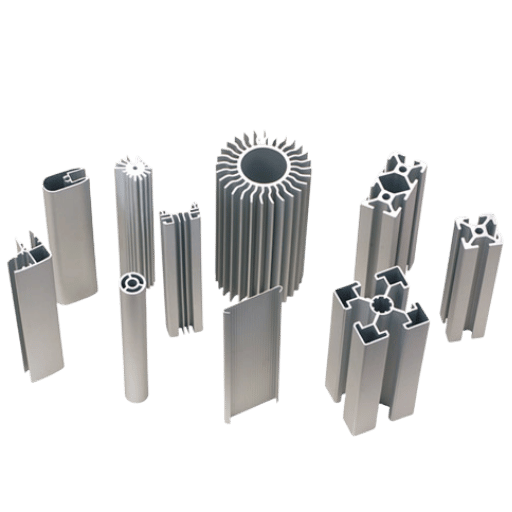

What Is an Aluminum Extruder?

The hydraulic press system – or actually the complete press, or even more – is often referred to simply as the ‘extruder’ in this industry. it means that the hot aluminum is pressed (extruded) by a hydraulic ram and forced to go through a die (opening in steel) with complex, machine precision shaped. the other side is that what come out will have exactly the same form (profile), like a rod, window-profile, or rail (T-slotted profile).

The extrusion press itself is quantified by force capability – the pressing power; a higher force presses larger profiles with greater wall thickness or more difficult materials, in fact. In addition to the press and die assembly, only shape matters when considering extrusions, and the shape is made up by the die. The die is, at its core, a thick steel disk with a profile opening machined into it. It’s as with the press one of the only 2 factors the design engineer will need be aware of prior to passing his drawing over to his extrusion manufacturer.

What Does an Aluminum Extruder Do?

An aluminum extruder heats an aluminum billet to about 375C – 500C and then uses a hydraulic press to force the bar up to 15,000 tonnes at high pressure into a die opening. The aluminum is a solid yet ductile material which comes through the die as a completed profile shape. An extruder quenches, stretches and cuts the profiles into manageable lengths. Extrusion works by deforming the metal at high pressure in a somewhat soft solid state and not by melting it.

The AEC Aluminum Extrusion Process Guide mentions a press capacity ranging between 100 to 15,000 tons – reflecting the enormous range of sizes the industry produces – anything from delicate architectural trim up to substantial beams required for building bridge decks.

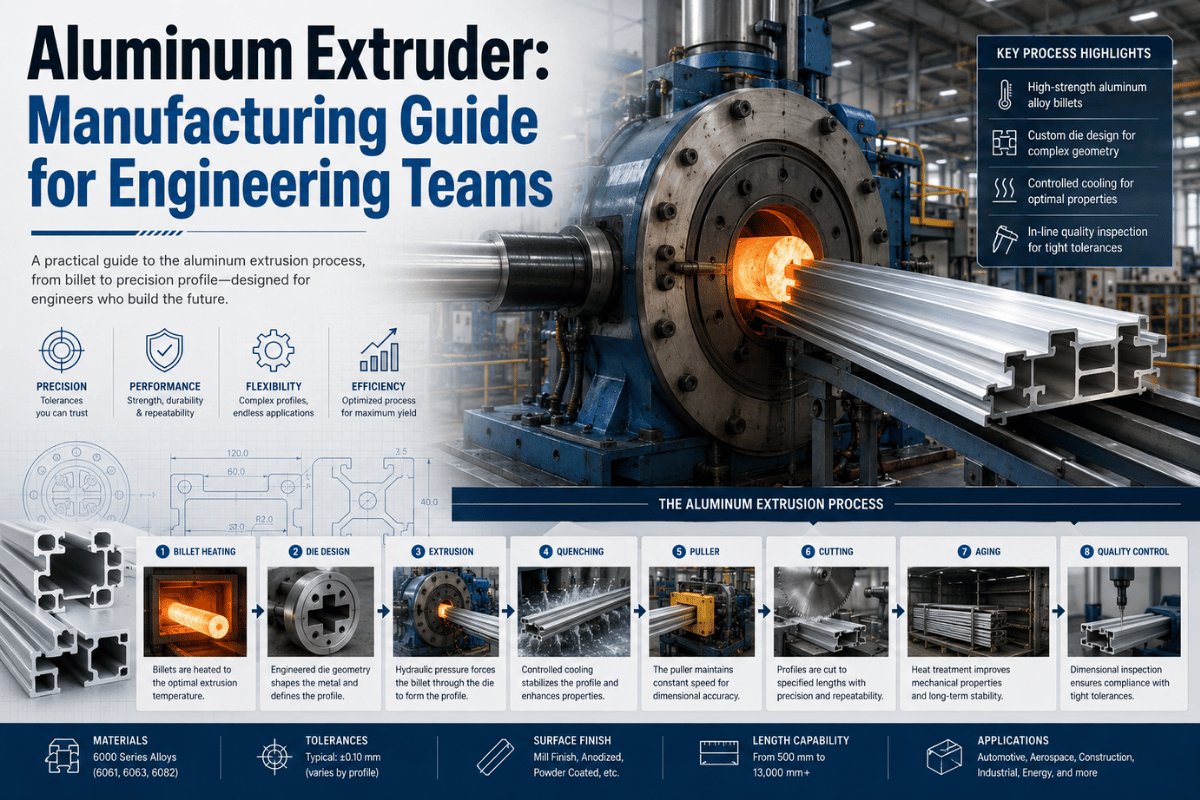

How the Aluminum Extrusion Process Works: 6 Key Steps

The full extrusion run starts from die preparation and ends up to the aging. These six steps will have the most interest for an engineer qualifying a supplier:

1. die prep and preheat (450-500C) – – – the die is either pulled from stock or milled brand new on an h13 tool steel die – then placed in a 450-500c range before being put into the press this pre-heat keeps the die from having too much thermal shock as aluminum extrudes thru the die – –
2. Billet preheat (375-500°C):A solid cylindrical billet–cut from a longer cast log–is placed in an oven. Target temperature is alloy-dependent. 6063-T5 operates at the lower range of temperatures; 7075-T6 needs to be heated further and controlled in terms oframpratesto prevent cracking. While the billet softens and becomes plastic, it remains solid throughout the extrusion process-aluminum is a solid state process.
3. Billet loading and lubrication: Thepreheatedbilltis loaded into thepress container and release agent,which prevents galling,is appliedto the ramface and billet’s surface. The billet slides into the container and the press hydraulic ram advances to contact the billet.
4. Ram pressure application (up to 15,000-tons press):The hydraulicramadvancestoblownout-or extrusionof thebillet intothe dieat 15,000ton-or-less offorce (on alargeextrusions Press). The aluminum fillscircumferentialto the side walls of thepress then squeezes through the opening in the dieasshape.For hallowsections, aluminum splits the length of mandrel inside and weldstogether under pressure at the point it reach the die.This solid-weld principle is how structure strength in hollowsare maintained.
5. Runoutand quench:As shape exitsthe press,a puller attaches and moves with Press velocity along the runouttable. Water quench-ing-or fans-solidify metal structure and start developing the proper temper. For 6063-T5air-quenches immediately at the press. For T-6’s (any of them), there’s also a separate solution heating process at a much higher temperature to prepare them for artificial aging.
6. Stretching, saw-cutting, andaging:Natural twists or bowing of the newly extruded profiles is corrected in a stretcher that clamps the material from both ends, pulls it tight, and holds it firm to produce a perfectly straight extrusion. Specialty Finish Saws cut lengths, from stock sizes to several feet long. Extrusions proceed to an aging oven to be treated artificially and develop the desired mechanical properties. Alternatively, some profiles are left to age naturally at room temperature, although T5 & T6 tempered forms are required for complex profiles and demanding structural applications — profiles are heat-treat aged to develop the final mechanical properties needed for service.

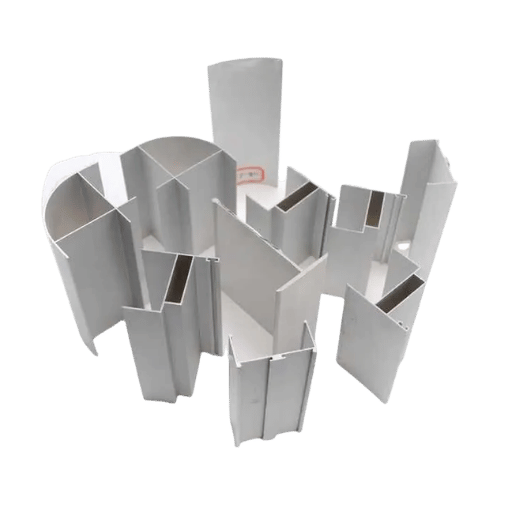

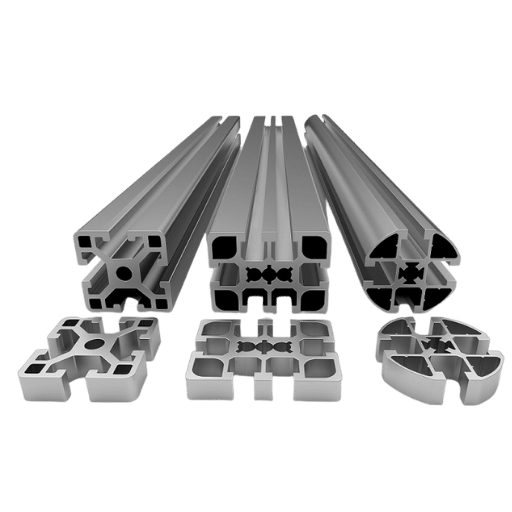

Aluminum Extrusion Profile Shapes: Solid, Hollow & Semi-Hollow

Every aluminum extrusion profile has a fixed cross-sectional shape determined by the die opening — the geometry the manufacturing process creates as the billet is forced through the die. Three categories cover the vast majority of profiles, and which category your design falls into dictates die type, tooling costs, and manufacturability.

The Three Profile Categories

If an extrusion, profile, framing, structural rail, custom aluminum extrusions replaces machined part(s). Most distributors keep a selection of standard stock profiles (angles, channels, square tube, t-slot). Custom profiles require a new die — a one-time tooling fee that is charged upfront and absorbed into the project cost. When a single extruded profile replaces several machined parts, the die cost is typically earned back within a modest volume run.

Common profile applications by category:

• Solid Framing, Base’s, Ladder Rails, Door Thresholds, t-slot system for factory automation
• Hollow: Frame profiles for window and curtain walls, vehicle crash management systems (CRMS), channel segments for battery casings of electric vehicles (EVs), cooling tubes for electric drives.
• Semi-hollow: Window surrounds, snap-fit trim, door seals, body cladding in cars.

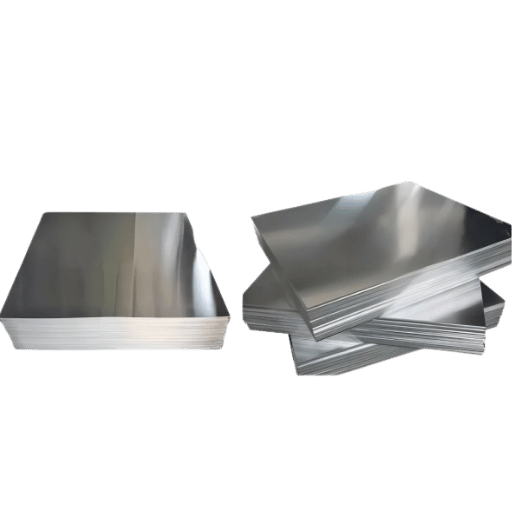

Choosing the Right Aluminum Alloy for Extrusion: 6061 vs 6063 vs 7075

From the initial choice of alloy, there’s a cascade of effects up and down the manufacturing chain: extrudability, die wear, quench specification, CNC machinability, anodizing, finished component cost. The fact that 6xxx alloys are most common throughout the world of aluminum extrusion suggests that they’re an acceptable compromise in strength, formability and surface finish. The following four alloys provide an example comparison:

What Is the Difference Between 6061 and 6063 Aluminum Extrusion?

The alloys are indeed related; both are Al-Mg-Si and 6061 contains more magnesium and silicon and so it’s about 50% stronger in yield than 6063 (for similar tempers). But, 6063 is easier to extrude and shows the metal more “plastically” to the die form and as such lends itself better to smooth anodizing finishes and architectural applications, so it generally would be preferred for those areas. 6061 is better in load carrying ability, will weld better, and can be machined to finer dimensions.

The 3-Level Alloy Decision Matrix for Aluminum Extrusion

Alloy property data is cross-checked against ASTM B221 (Standard Specification for Aluminum and Aluminum-Alloy Extruded Bars, Rods, Wire, Profiles, and Tubes) and ISO 209 aluminum alloy designations.

On internal alloy capabilities please read my aluminum CNC machining service and in more detail into machining 2024 aluminum alloy.

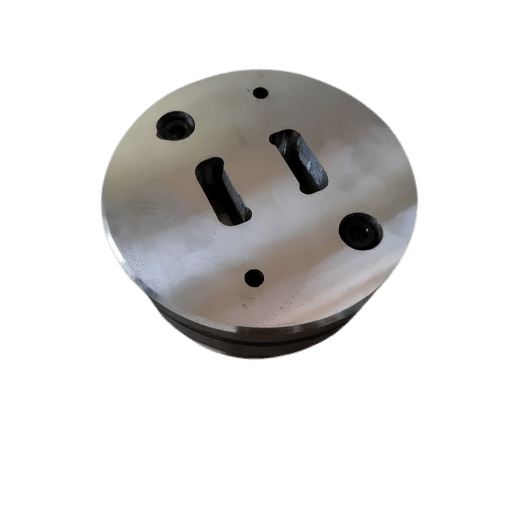

Aluminum Extrusion Dies: Solid, Hollow & Semi-Hollow Die Design

The extrusion die is a simple block of metal with a precise slot through it, but this is misleading, it’s an incredibly complicated piece of engineering. An effectively designed die influences: bearing length, die and punch profile, temperature distribution throughout the die profile, metal flow speed, die face condition, and of course the product surface and straightness. Die set up.

Three Die Types and Their Components

Solid Dies (for producing solid shapes such as bar, angle and channel) are the simplest to produce and the least expensive; comprising three separate parts stacked together as follows; an aluminum flow controlling feeder plate through which the aluminum flows into the die, the die itself with the final shape of the extrusion, and a backer plate which adds strength to the die against press forces up to 15,000 Tons of ram force.

Hollow dies (for profiles with internal voids: tubes, frames, multichannel extrusions) use a mandrel to create the internal void. The aluminum splits around the mandrel support, then re-welds under pressure before exiting the die cap. The die stack is: mandrel + die cap + backer. Hollow dies require more precise engineering because the weld seams – while metallurgically sound under proper process conditions – must be designed to avoid landing in structurally critical zones. The Aluminum Extruders Council maintains dimensional and quality guidelines for hollow die design.

Semi-hollow dies combine elements of both. They’re used for profiles with a partially enclosed void – a C-channel with a narrow gap, for example – where the gap is too narrow to allow a mandrel-free solid die to work without metal flow imbalance.

Die Cost: What to Budget for Tooling

Die tooling is a one-time non-recurring cost (NRE) charged at the start of a project. For straightforward solid-profile aluminum extrusion dies used in architectural and industrial applications, tooling costs typically range from $400 to $2,000 depending on size and complexity. Complex hollow dies with multiple internal voids, precision-ground bearing surfaces, and high-volume life expectancy can reach $5,000-$25,000 for precision tooling. These figures should be discussed directly with your die supplier, as cost depends heavily on profile complexity, circle size, wall thickness ratios, and production volume expectations.

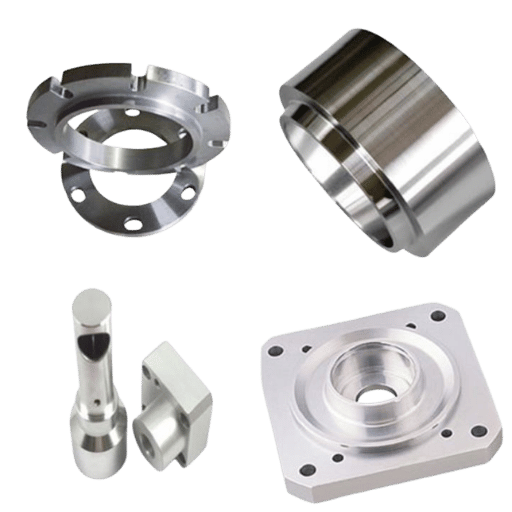

CNC Machining of Aluminum Extrusions: Operations, Tolerances & Surface Finish

Aluminum extrusions leave the press with dimensional characteristics governed by ASTM B221 tolerances – which are wider than machined tolerances by design. For most non-mating structural applications, extrusion-as-extruded is sufficient and the most cost-effective choice.

For holes, mating surfaces, tight positional tolerances, or aerospace quality requirements, CNC post-machining is the answer.

Can Extruded Aluminum Be CNC Machined to Tight Tolerances?

Yes-when it’s properly fixtured, machined with appropriate cutting parameters, aluminum extrusions can hold exceedingly tight tolerances. Here at Lecreator’s facility, we’ve routinely Machined Extruded Aluminum Profile to ±0.001″ positioning accuracy and ±0.0002″ repeatability at high-speed spindles of 24,000 RPM. The challenges are mostly fixture design for long extrusions, and thermal expansion management for large form factor parts.

CNC Operations, Anodize Prep & Post-Processing for Aluminum Extrusions

• Precision Milling -face milling, slot milling, and pocket milling along the profile length up to 40 ft
• Drilling and Tapping -mounting holes, threaded inserts, fasteners to positional tolerance of ±0.001”
• CNC Turning -for round extruded bar stock turned to final OD tolerance, SeeCNCTurningService
• Wire EDM -intricate cutouts, thin-wall feature and die-relief work. SeeWireEDMService
• Anodize Prep Machining -finish-machining of mating surfaces prior to the Applicationofeither TypeIIorTypeIIIAodizing(Keynote,anodiz Adds an additional0.0004-0.0016per-faceand must beacconted for on tight tolerance holes prior to the Anodize application).

Tolerance Classes for CNC-Machined Aluminum Extrusions

To learn more about our aluminum extrusion machining capabilities and to review all of our services and specs, visit AluminumExtrusionMachiningServicepage.

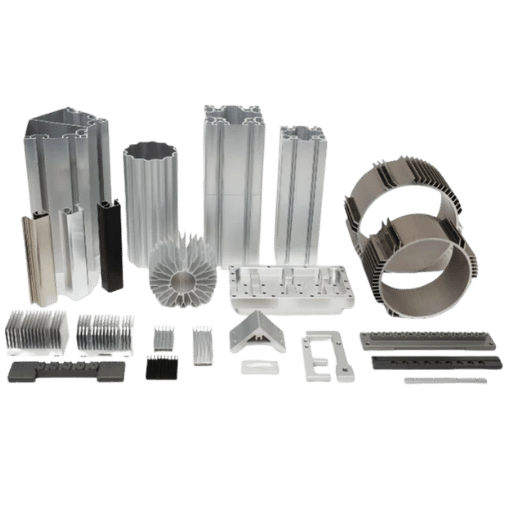

Why Is Aluminum Extrusion Expensive? 4 Cost Drivers Explained

When engineers come into Lecreator pricing an extruded aluminum component for the very first time, sometimes there’s Sticker Shock. A simple stock aluminum angle is cheap – few dollars per foot. A custom hollow aluminum shape with several internal void volumes and required Anodize-grade surface finish, Machined to exacting toleranc, then its another matter altoghether. Here’s the 4 factors that mostly drive variation in cost.

The 4 Cost Drivers

1. DieTooling (upfront/one-time cost):This upfront investment for theAluminumextrusiondie is a non-recurring cost, and it isn’t tied to volume (meaning the more units you order, the less impact of this “per unit” the upfront die cost becomes). For a standard simple solid aluminum profile the die cost is around$400-Tikis . For a precision hollow profile with several voids the die costs can be as much as$5,000-$25,000 . First-timers don’t always realize this upfront cost may look like a service charge, but in fact it’s truly a capital expense.
2. Billet material cost: Aluminum prices are commodity driven on LME, tied to Section 232 tariffs (see H2-8) and the alloy specified. An equivalent weight of 7075 billet will run around 1/3 the cost of 6063 billet. Scrap and stub ends of material drive actual material cost on short run production runs.
3. Press time & energy: Aluminum extrusion presses are energy hogs. Faster extrusion speed reduces press time/linear foot of extrusion but produces hotter part temperature and surface roughness. alloys which must run slowly-7075, 2024, are more expensive per linear foot to extrude than fast-running alloys such as 6063.
4. CNC post machining where tight tolerance required: As-extruded tolerances for extrusions (ASTM B221 standard) are generally in the ±.012“ ±.020” range in any cross section dimension. Anything requiring tight tolerance (e.g. ±.005“) will require CNC machining operations which will result in added setup, machining cycle, and fixturing costs – especially for longer sections.

If your production volume is lower and extrusion die cost is a barrier for product initial design validation, consider exploring metal 3D printing or utilizing rapid prototyping service suppliers rather than investing in an extrusion die.

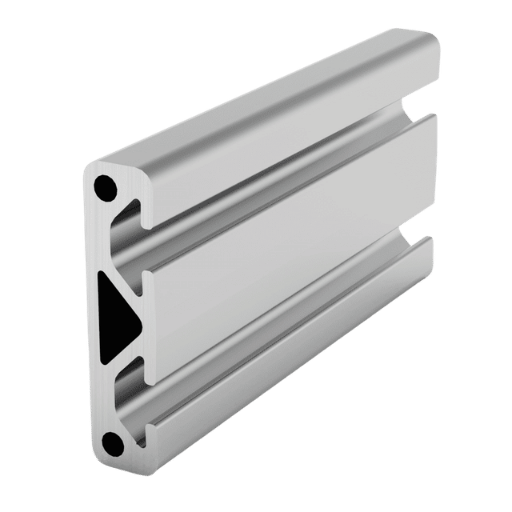

Aluminum Extrusion Outlook: EV Demand, Tariffs & Sustainability in 2026

In 2026, North American aluminum extrusion procurement, costing and specification decisions are being molded by three powerful trends impacting buyer risks and supply-chain environmental sustainability and resilience considerations.

“North American extruders remain resilient amid challenging market conditions and shifts in international trade.”
Jason Weber, President, Aluminum Extruders Council (AEC), April 7, 2026 (Light Metal Age)

Trend 1: Section 232 Tariff Expansion (April 2026)

On April 30th, 2026, the U.S. introduced a new Section 232 proclamation on aluminum that replaces existing tariff-assessment methodology. Previously tariffs were levied as an ad valorem duty (a percentage of a product’s customs value). The new proclamation assesses tariffs as a full customs value-based duty, directly increasing the tariff burden on all imported aluminum extrusions. While it can be seen as bolstering domestically produced aluminum extrusion products, this proclamation has the potential to significantly increase the total landed cost of all foreign sourced extrusions for new projects and on existing open orders. Update all international source cost models accordingly to avoid future surprises!

Trend 2: Environmental Product Declarations (EPD) as Buyer Requirements

The AEC recently launched the new EPD Generator tool, and North America’s leading aluminum extruders have begun certifying their products to the new AEC standard, with the first example certified in April of 2026. While the use of EPDs in structural and architectural applications has been more limited than other green building elements, it’s steadily expanding in regulated green building sectors and to the EV supply chain and government procurement requirements. If your customers are requiring EPD verification in the materials that comprise your product or end use, ensure your supplier can provide the relevant documentation.

Trend 3: EV Battery Tray and Thermal Management Demand

Automobile applications increasingly demanding the use of 6063- T5 and T6 for battery enclosures, cooling channels and crash management structures to enable integrated CNC post-machining (tight hole patterns to bolt battery modules and cooling plate interfaces, seals surfaces for ropemoldings). These automotive-related jobs tend to favor integrated machining suppliers (profile + post-process) from their extrusions. Recycling- friendly alloys help automotive OEMs meet sustainability objectives to measure high recycled aluminum content and provide extensive documentation.
